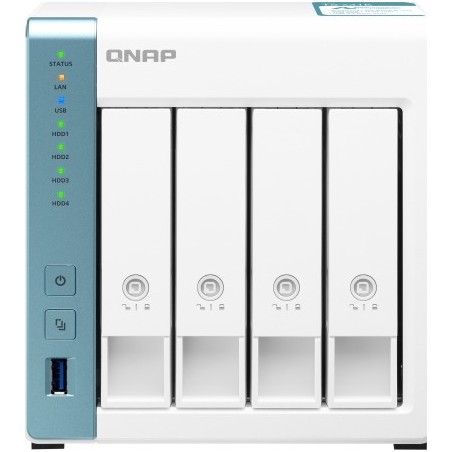

Equipped with a quad-core 1.7 GHz processor, the TS-431K provides four-bay storage for secure storage of your important files and data, allowing you to easily share files with family and friends. With its compact, pure white minimalist design, the TS-431K easily integrates with any home decor and takes up little space. The TS-431K comes with lockable disc slots to ensure that the drives are not accidentally removed, causing data loss. The TS-431K provides comprehensive local, remote and cloud backup and secure Snapshots technology to create a reliable backup and disaster recovery plan. In the event of a system failure or accidental file deletion, you can quickly restore the data to normal.

• File Station enables centralized management of files in NAS, connected devices and attached clouds, making data management easier and saving time.
• HBS (Hybrid Backup Sync) can back up and synchronize your data to other NAS devices, servers and cloud storage for comprehensive backup and disaster recovery.
• Snapshots fully record system and data status and allow you to protect files and data from accidental removal and malware attacks.
• Rich multimedia applications and a wide range of streaming methods deliver a more multimedia experience.
• Connect to external USB devices such as card readers, printers, or uninterruptible power supply (UPS) via USB 3.2 Gen 1 for greater application potential.
• The myQNAPcloud service allows you to easily access, manage and share NAS files over the Internet.

PACKAGE CONTENTS

• TS-431K
• Ethernet Cable x 1
• Adapter
• Power Cord
• Flat head screw (for 3.5 "HDD)
• Flat head screw (for 2.5 "HDD)
• Quick Installation Guide

SPECIFICATIONS

CPU

• AnnapurnaLabs, an Alpine AL-214, 4-core, 1.7GHz Amazon company

CPU architecture

• ARM 32 bits

Floating point unit

• Yes

Encryption module

• Yes

System memory

• 1GB DDR3

Maximum memory

• 1GB DDR3

Flash memory

• 512 MB (dual OS boot protection)

Disk drive bay

• 4 x 3.5 "SATA 6 Gbps, 3 Gbps

Disk Drive Compatibility
3.5 "position:

• 3.5 "SATA hard disk drives
• 2.5 "SATA hard disk drives
• 2.5 "SATA SSD

Hot-swappable

• Yes

Support SSD cache acceleration

• Yes

Gigabit Ethernet port (RJ45)

• 2

Jumbo framework

• Yes

USB 3.2 Gen 1 port

• 3

Shape factor

• Desktop

LED indicators

• Power, status, LAN, USB, HDD1-4

Buttons

• Power, Reset, USB Auto Copy

Dimensions (H x W x D)

• 161 x 160 x 219 mm

Weight (net)

• 3 kg

Weight (total)

• 4.3 kg

Operating temperature

• 0 - 40 ° C (33 ° F - 104 ° F)

Relative humidity

• Relative humidity 5 to -95%, non-condensing, hygrometer temperature: 27 ° C (80.6 ° F)

Power supply unit

• Adapter 90W, 100-240V

Power Consumption: HDD Sleep Mode

• 11,928 W

Power consumption: Operating mode, typical.With fully occupied units

• 26,57 W

Ventilator

• 1 x 120mm, 12V DC

Sound level

• 21.3 db (A)

System warning

• Buzzer

Kensington Security Slot

• Yes

Max. number of concurrent connections (CIFS)

• 400
