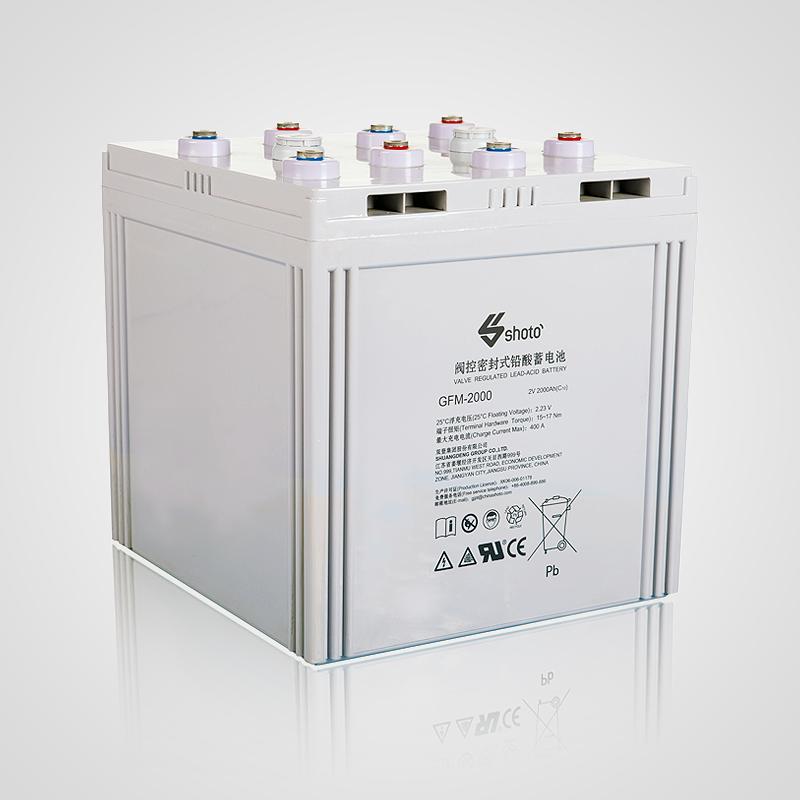

Shoto GFM - 2000 VRLA Maintenance - free Sealed Lead - acid AGM Battery for Telecom / Energy Storage / UPS
AED2,150.00
Tax excluded
Shoto GFM - 2000 VRLA Maintenance - free Sealed Lead - acid AGM Battery for Telecom / Energy Storage / UPS
Security policy
Confidentiality and Integrity
Delivery policy
5 days by Air, 2-3 weeks by sea
Return policy
Within 1 week of delivery
Shoto GFM - 2000 VRLA Maintenance - free Sealed Lead - acid AGM Battery for Telecom / Energy Storage / UPS
|
Normal Voltage
|
2V
|
||
|
Capacity
|
2000Ah @ 10hr to 1.80V @ 25˚C(77˚F)
|
||
|
Weight
|
112.5 kg (248.02 lbs)
|
||
|
Dimensions
|
Length: 385 mm (15.12 in)
Width: 363 mm (14.29 in)
Height: 369 mm (14.53 in)
Total height: 388 mm (15.28 in)
|
||
|
Internal Resistance (full charged)
|
0.18 mΩ
|
||
|
Short- circuit current
|
18520A
|
||
|
Self Discharge @25˚C(77˚F)
|
Less than 3% after 30 days storage
|
||
|
Operating Temperature Range
|
Discharge: -40˚C ～ 50˚C(-40˚F ～ 122˚F)
Charge: -20˚C ～ 45˚C(-4˚F ～ 113˚F)
Storage: -20˚C ～ 40˚C(-4˚F ～ 104˚F)
|
||
|
Recommended Operating Temperature
|
15˚C ～ 25˚C (59˚F ～ 77˚F)
|
||
|
Recommended Charging Current
|
300A
|
||
|
Charging Voltage @25˚C(77˚F)
|
Float: 2.23 V/cell
Equalize: 2.35 V/cell
|
||
|
Terminal
|
M8
|
||
|
Capacity Affected by Temperature
|
106 % @ 40˚C
80 % @ 0˚C
60 % @ -20˚
|
||
|
Design life @25°C
|
15 years
|
Main Applications
1. Back-up power for communication and signal system
2. Back-up power for Electric power system&nuclear power station
3. Solar and wind power generation energy storage system
4. Back-up power for military&navigation
5. Back-up power for UPS&emergency lighting
Benefits
1. 15 years designed life
2. Adopt the TLS patent technology with reliable sealing
3. Unique design for monomer structure, complete range of models with wide choice
4. Mature product technology and stable operation
Technical Features
1. The plate is with the structure of big grid and block, and is made of special alloy through special process of quadric basic lead sulfate, which improves specific energy of the battery and prolongs the cycle service life
2. Positive grid is made of special multi alloy, which overcomes the shortcomings of early capacity loss. It has long service life under both float charge and cycle utilization.3. Add special additives tothe positive and negative plate, improve the utilization of active material and charging acceptability
4. High-purity electrolyte and special additives Unique assembled maze seal structure of termi-nal (patented technology) ensures the safety and reliability of seal.
Specific Parameters

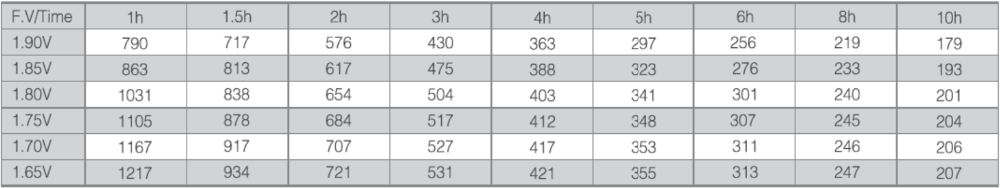

Constant Current Discharge Characteristics Unit: A (25ºC, 77ºF)
Constant Power Discharge Characteristics Unit: W/cell (25ºC, 77ºF)
Performance Curve
